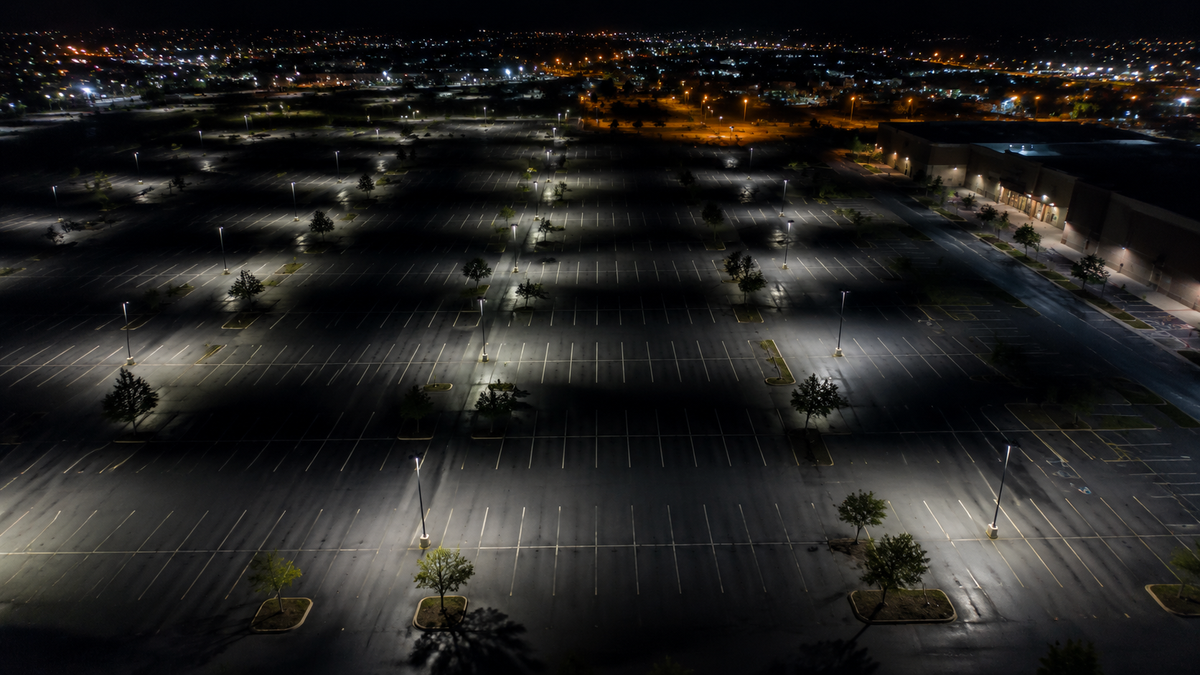

Parking lots rarely fail evenly. Most lighting issues appear in patterns: the pavement directly below each pole may look extremely bright, while areas between fixtures become noticeably darker. Corners, parking spaces, and driving lanes can have inconsistent visibility, creating uneven coverage across the site.
Improving parking lot lighting is not about simply increasing lumen output. A well-designed system should deliver balanced illumination where people walk, drive, and park.
In many cases, dark spots are caused by fixture spacing, incorrect distribution patterns, poor aiming, aging equipment, or a mismatch between the fixture and the application. Before replacing equipment, it is important to understand what is actually causing the uneven lighting.
This guide explains how to identify dark spots, evaluate lighting uniformity, adjust fixture layouts, select the right optics, and determine whether a simple adjustment or a complete upgrade is needed.
Start With a Lighting Assessment Before Changing Fixtures
The most common mistake when addressing dark areas is replacing fixtures before evaluating the existing lighting layout.
Many property owners assume brighter fixtures will solve the problem. However, adding more lumens does not always improve visibility. If the fixture has the wrong distribution pattern or the poles are positioned incorrectly, the result can be brighter hot spots while dark areas remain unchanged.
A basic site assessment should be completed before selecting new equipment.
| What to Check | Why It Matters |
| Pole spacing | Determines overlap between fixtures |
| Mounting height | Affects light coverage |
| Fixture wattage | Indicates electrical input |
| Lumen output | Indicates available light |
| Distribution type | Determines where light is directed |
| Fixture orientation | Affects target coverage |
| Pole location | Determines overall layout |
| Obstructions | Can block or redirect light |
| Fixture age | May affect lumen output and performance |
A dark area on the pavement does not always mean the fixture is too weak. The issue may come from an optic that does not match the site, excessive spacing between poles, incorrect fixture aiming, or reduced output from aging equipment.
For example, upgrading to LED parking lot lights with higher wattage may increase brightness directly below the fixture but still leave gaps between poles if the light distribution is not suitable.
The right approach is to identify the reason behind the problem first, then select the appropriate solution.
Measure Average, Minimum, and Uniformity
Lighting performance should be evaluated through measurements rather than appearance alone.
A parking lot may look bright overall while still having poor coverage in certain areas. This is why professional evaluations rely on measured illuminance values and photometric analysis to understand how light is distributed across the site.
Average Illuminance describes the overall light level across the calculation area. However, a high average value does not always indicate good performance because bright areas can hide weak points.
Minimum Illuminance identifies the lowest light level within the area. For parking lots with complaints about dark spots, this measurement helps locate areas that need improvement.
Maximum Illuminance shows areas receiving excessive light, which are often located directly below fixtures. Extremely high values may indicate poor distribution or unnecessary glare.
Uniformity Ratio (commonly expressed as Average ÷ Minimum) shows how evenly light is distributed. A lower ratio generally indicates more consistent coverage.
| Metric | Existing System | Improved System |
| Average Illuminance | 2.4 fc | 2.3 fc |
| Minimum Illuminance | 0.4 fc | 1.0 fc |
| Maximum Illuminance | 7.2 fc | 5.8 fc |
| Average / Minimum | 6:01 | 2.3:1 |
The example above shows an important point: the average illuminance changed very little, but the minimum illuminance improved significantly. The lighting system became more balanced without simply making the entire parking lot brighter.
For outdoor lighting projects, consistency is often more important than maximum brightness. Industry organizations such as Illuminating Engineering Society (IES) provide lighting guidelines and technical resources used by professionals when evaluating lighting performance.
Identify the Cause Before Choosing a Solution
Different lighting problems require different fixes.
Adding fixtures may improve coverage in some situations, but it is not always the best option. If the actual problem is incorrect optics or fixture orientation, additional fixtures may increase installation costs while creating unnecessary brightness.
| Symptom | Possible Cause | Recommended Action |
| Very bright directly under poles | Concentrated optic | Review distribution |
| Dark halfway between poles | Excessive spacing | Recalculate spacing |
| Dark along the perimeter | Poor lateral distribution | Review optic |
| One isolated dark zone | Obstruction or failed fixture | Inspect area |
| Entire lot is dim | Insufficient output | Evaluate lumen requirements |
| New LED retrofit still has dark spots | Incorrect replacement optic | Review IES file |
| Strong glare plus dark areas | Poor optical control | Select better distribution |
The solution should always match the cause.
A fixture with higher wattage is not automatically a better choice. Reviewing the manufacturer’s IES photometric files can show how the fixture actually distributes light before installation.
Optimize Pole Spacing for Better Coverage
Pole spacing is one of the most important factors affecting parking lot lighting uniformity. However, there is no single spacing distance that works for every project.
The correct spacing depends on several site conditions, including mounting height, fixture output, distribution pattern, parking lot layout, and the required illumination level.
| Pole Spacing | Potential Result |
| 80 ft | Greater overlap |
| 100 ft | Depends on fixture and mounting height |
| 120 ft | Requires careful photometric evaluation |
| 150 ft+ | Higher risk of weak areas |
These values are only examples. Actual spacing should always be confirmed through a lighting layout using the selected fixture’s photometric data.
A common mistake is assuming that fewer, higher-output fixtures will always provide better results. In reality, a layout with more evenly distributed fixtures can sometimes achieve better uniformity.
For example, ten 150W fixtures may produce similar total lumen output as twelve 100W fixtures. However, the second design may provide better visibility because the light overlap between fixtures is improved.
A properly designed system balances fixture quantity, spacing, and optical performance rather than focusing only on wattage.
Match the Distribution Pattern to the Parking Lot Layout
The optical distribution pattern determines where light reaches the ground and plays an important role in eliminating dark areas.
Choosing the correct distribution is especially important for parking lots because different areas require different coverage patterns.
| Distribution | General Coverage | Typical Consideration |
| Type II | Forward, relatively narrow | Roadways and narrower areas |
| Type III | Wider forward distribution | Parking areas |
| Type IV | Broad forward distribution | Perimeter applications |
| Type V | Symmetrical around fixture | Open areas around poles |
Distribution type alone does not tell the entire story.
Two fixtures with the same Type III classification may still perform differently because of variations in beam angle, candela distribution, optical design, and light intensity.
Before selecting a replacement fixture, review the manufacturer’s photometric information, including the IES photometric files (available from fixture manufacturers), to understand the actual coverage pattern.
| Fixture | Wattage | Lumens | Distribution | Between-Pole Coverage |
| Fixture A | 150W | 22,000 lm | Concentrated | Lower |
| Fixture B | 150W | 22,000 lm | Wider | Higher |
The example above shows why wattage and lumen output alone cannot determine lighting performance.
A fixture with the same power rating can deliver very different results depending on how effectively the optics distribute light across the parking area.
Adjust Mounting Height and Fixture Orientation
Even a high-quality fixture can underperform if it is installed incorrectly.
Two installation factors have a major impact on coverage:
-
Mounting height
-
Fixture orientation
Mounting height affects the size of the coverage area, light intensity, and overlap between fixtures. Fixture orientation includes tilt angle, rotation, arm position, and aiming direction.
| Installation Issue | Potential Effect |
| Fixture aimed too far away | Dark area near the pole |
| Fixture aimed too close | Dark area farther away |
| Incorrect tilt | Uneven pavement illumination |
| Inconsistent mounting heights across poles | Inconsistent coverage |
| Fixture not aligned with the lot | Light wasted outside the target area |
Before replacing an existing fixture, confirm that it is installed according to the manufacturer’s recommended application.
In some cases, a simple adjustment to fixture aiming can improve coverage without requiring new equipment.
Choose Between Re-Aiming, Adding Fixtures, and Retrofitting
Once the cause of uneven lighting has been identified, the next step is choosing the right correction method.
Not every dark spot requires additional fixtures. The best solution depends on whether the issue comes from installation, optics, spacing, or outdated equipment.
| Situation | Best First Option |
| Fixture is functional but misaligned | Re-aim |
| Optic does not match the site | Change distribution |
| Poles are too far apart | Add fixtures or redesign spacing |
| Isolated dark zone | Add a supplemental fixture |
| Old HID fixture | LED retrofit |
| Entire system is underlit | Full lighting redesign |
| Excessive glare | Improve optical control |
| Site layout has changed | Recalculate photometrics |
| Solution | Relative Complexity | Coverage Improvement |
| Re-aim fixture | Low | Low–Medium |
| Change optic | Medium | Medium |
| Add fixture | Medium | High |
| Adjust pole layout | High | High |
| Full LED retrofit | Medium–High | High |
For older HID systems, upgrading to LED parking lot lighting retrofit solutions can improve efficiency, reliability, and maintenance costs. However, replacing fixtures alone does not guarantee better uniformity.
The replacement fixture must match the existing site conditions, mounting height, and lighting requirements.
For energy efficiency information and LED upgrade considerations, reference LED lighting efficiency resources from the U.S. Department of Energy.
Use IES Photometric Data and a Lighting Layout
Photometric analysis is the step that turns lighting improvements from guesswork into a predictable design process.
Without a lighting layout, many projects become a cycle of installation, adjustment, and replacement. A proper photometric plan allows designers to evaluate fixture performance before installation.
A lighting simulation considers:
| Parameter | Purpose |
| Pole locations | Defines fixture positions |
| Mounting height | Defines geometry |
| Fixture model | Defines optical performance |
| Wattage | Defines electrical input |
| Lumens | Defines output |
| Distribution | Defines light pattern |
| Tilt | Defines aiming |
| Calculation grid | Evaluates pavement coverage |
| Average | Measures overall level |
| Minimum | Finds weak points |
| Maximum | Finds hot spots |
| Uniformity | Evaluates consistency |
A before-and-after simulation can show whether a redesign actually improves performance.
Existing Layout
| Metric | Result |
| Average | 1.32 fc |
| Minimum | 0.18 fc |
| Uniformity | 7.3:1 |
| Dark zones | 6 |
Optimized Layout
| Metric | Result |
| Average | 2.71 fc |
| Minimum | 1.02 fc |
| Uniformity | 2.7:1 |
| Dark zones | 1 |
Example values shown for illustration purposes. Actual results vary depending on fixture selection, pole spacing, mounting height, and site conditions.
The average light level changed very little, but uniformity improved significantly.
This demonstrates an important principle: the purpose of lighting design is not to create the highest possible brightness. It is to provide consistent and comfortable visibility across the entire property.
Verify the Lighting Improvement in the Field
Installation is not the final step.
After completing the lighting upgrade, the same measurements used during the initial assessment should be checked again.
Verify:
-
Average illuminance
-
Minimum illuminance
-
Uniformity ratio
-
Dark spot reduction
-
Glare levels
-
Coverage in pedestrian and vehicle areas
| Measurement | Before | After |
| Average | Record | Record |
| Minimum | Record | Record |
| Maximum | Record | Record |
| Uniformity | Calculate | Calculate |
| Dark zones | Count | Count |
| Glare | Evaluate | Evaluate |
A successful lighting improvement should be measurable, not only noticeable.
Parking Lot Lighting Uniformity Checklist
| Checkpoint | Status |
| Confirm pole locations | ☐ |
| Measure pole spacing | ☐ |
| Confirm mounting height | ☐ |
| Identify fixture model | ☐ |
| Review IES file | ☐ |
| Check distribution type | ☐ |
| Check fixture orientation | ☐ |
| Measure average illuminance | ☐ |
| Measure minimum illuminance | ☐ |
| Calculate uniformity | ☐ |
| Identify dark zones | ☐ |
| Run photometric analysis | ☐ |
| Compare solution options | ☐ |
| Verify results after installation | ☐ |
Better Uniformity Starts With Better Lighting Design
Fixing parking lot dark spots is not just about installing brighter fixtures.
A successful lighting upgrade requires a complete evaluation of fixture selection, pole spacing, optical distribution, installation conditions, and photometric performance.
The most important factors are:
-
Proper fixture spacing
-
Correct distribution pattern
-
Accurate mounting and aiming
-
Photometric verification
When these elements work together, parking lots can achieve better visibility, improved safety, and more consistent illumination without unnecessary energy use.
If your parking lot is bright directly under the poles but dark between fixtures, start with a lighting evaluation before increasing wattage or adding more fixtures. A properly designed solution can identify the real cause and provide a more effective long-term improvement.
Frequently Asked Questions(FAQ)
⏵ Will adding more fixtures always fix dark spots?
Not always. If the problem comes from incorrect optics, fixture aiming, or poor layout design, additional fixtures may increase brightness without improving uniformity.
⏵ What uniformity ratio should I aim for?
The recommended ratio depends on the application, site requirements, and local standards. In general, a lower Average-to-Minimum ratio indicates more consistent lighting performance.
⏵ Is an LED retrofit the same as fixing uniformity?
No. An LED retrofit can improve efficiency and reduce maintenance, but uniformity still depends on fixture selection, optics, spacing, and installation design.
⏵ How often should parking lot lighting be reassessed?
Lighting should be reviewed after major upgrades, layout changes, or when dark areas and visibility complaints appear. Regular inspections can also help identify performance decline over time.
⏵ Can I fix uniformity without a professional photometric study?
Minor issues such as fixture aiming or obvious spacing problems may be corrected without a full study. However, for redesigns and major upgrades, a photometric analysis provides the most reliable way to predict results before installation.
