LED Parking Lot Lighting: Selection, Design & Compliance

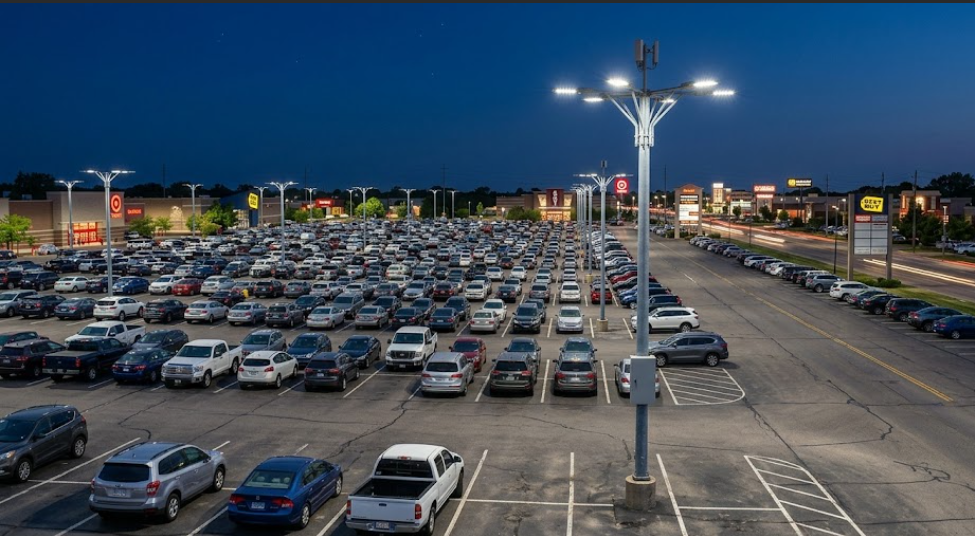

Friends often ask me, "I want to replace the lights in my parking lot with LED fixtures. What should I choose?" Whenever I hear this question, I think about the times I've tried to drive into a parking lot late at night and had trouble seeing because of things like dark spots, bright lights, and old light fixtures that didn't light up the ground.
Buying high-wattage bulbs and putting them in parking lot lights isn't the whole story. It involves thinking about money and dealing with complicated city reviews. Today, I'll break it down for you in a casual, conversational way.


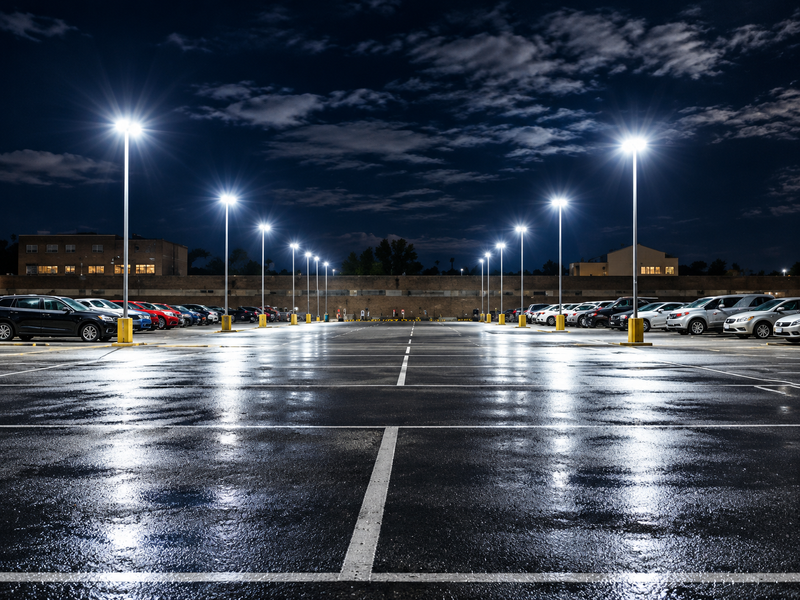

Choosing Lights and Pole Placement: Don't be fooled by wattage.

Many clients come to me and say, "Just recommend a 200-watt light for me." I usually interrupt them right away: When looking at LEDs, don't just focus on wattage—look at lumens!

  1. Determine the height of your poles and the amount of light you need.

First, assess the size of your site. Based on my own experience working on projects, I've created a useful framework for setting up configurations.
Parking Lot Size and Type Light Pole Height LED Fixture Power Corresponding Lumen Output (Lumens) Recommended Light Pole Spacing
Small / Retail Stores (fewer than 50 spaces) 15 – 20 ft 80W – 150W 12,000 – 20,000 lm 40 – 60 ft
Medium / Commercial Complexes (50–200 spaces) 20 – 25 ft
(Golden Height)		 150W – 200W 20,000 – 30,000 lm 60 – 80 ft
Large / Shopping Malls (more than 200 spaces) 25 – 35 ft 200W – 400W 30,000 – 55,000+ lm 80 – 110 ft
Note (Wattage vs. Lumens): Modern commercial LEDs typically have a brightness of between 130 and 150 lm/W. When choosing a model, focus on the total lumen output instead of just the wattage.

  1. Here are the key lighting standards and parameters:

  • Average Illuminance (Foot-Candles): For standard parking spaces, the ground should be bright enough to see well, with a light level of 1.0–2.0 foot candles (fc). For areas where safety is a top priority, like entrances/exits, main driveways, and crosswalks, it's best to increase this to 2.0–5.0 fc.
  • Uniformity Ratio: The ratio of the maximum to the minimum brightness (Max:Min) should be kept within 15:1 (the ideal average-to-minimum ratio is 4:1). This will strictly prevent "dark spots" or "hot spots" caused by excessive glare between light poles.
  • Lens Distribution Types (Optics):
      Type III (Forward-Throw): It's perfect for lighting up parking lots and making sure that light doesn't go too far back.
      Type V (360° Symmetrical): It is perfect for lighting up parking lots. It can be used as a round or square light that shines in all directions, lighting up many parking spaces at once.

Photometric Lighting Study

A photometric analysis is a digital process that uses computer software to create a model of the lighting effects of a site before construction. This process allows for exact predictions of how much light will reach a specific point.

  1. The Best Industry Design Software

  • AGi32: The best software for making models of how light falls on surfaces. It supports complex terrain, tilt adjustments, and glare assessment.
  • Visual Lighting: It is commonly used for fast 2D/3D design in typical commercial projects.
  • Dialux / Relux: These are the tools that architects commonly use for international projects.

  1. The five-step photometric simulation method

  • Step 1: Import CAD Site Plans:
      Use the software to import CAD or PDF site plans. Then, calibrate the scale precisely and define building outlines, roadways, sidewalks, and property boundaries.
  • Step 2: Load IES Data Files.
      To get the exact light intensity and brightness distribution for the lights, upload the electronic light distribution files (.ies) that the light manufacturers provide.
  • Step 3: Pole Placement and Parameter Settings:
      Place light poles on the virtual grid and set the installation height, arm length, rotation angle, and light distribution type (e.g., Type III / Type V).
  • Step 4: Making a grid and creating a pseudocolor heatmap
      The software makes a 10x10 ft ground sampling grid, calculates illuminance (in foot-candles) at each point right away, and shows a pseudocolor heatmap.
  • Step 5: Optimization, Adjustment, and Export for Building Permit Submission:
      Adjust the positions of the lights and the lens angles until they meet the IES illuminance standards and local "zero light trespass" regulations.


How to Read IES Files and BUG Ratings

The key to understanding IES files is learning to read the Polar Candela Diagram and BUG ratings.

  1. The Polar Candela Diagram shows how the brightness of a lamp is spread out in 3D space at different angles.

  • Nadir (0°): The point directly below, which is at right angles to the ground.
  • Vertical Angles (0°–180°): 0°–90° shows light that is being directed downwards (this is what we call effective illumination); 90°–180° shows light that is being directed upwards (this is what we call sky glow).
  • Light distribution pattern: High-quality Type III parking lot lights usually change their brightness to around 60° to make sure that they light up the area evenly over long distances.

  1. How the BUG Rating System works

The IES and the International Dark-Sky Association (IDA) created the BUG rating. This rating goes from 0 to 5, with lower numbers meaning better light control:
  • B (Backlight): This is to check how much light is emitted towards the back of the lamp. If streetlights are near houses, B1–B2 ratings must be used, or a light shield must be installed.
  • U (Uplight): It measures the amount of light that is directed towards the sky at an angle greater than 90° from the horizontal. Projects that meet the Dark Sky guidelines must not allow any uplight.
  • G (Glare): It checks how well the light is spread over a wide angle of 60°–90°. To avoid glaring light that might interfere with drivers' vision, choose G1–G2.


Dark Sky Compliance and Local Planning Regulations

To reduce light pollution, protect the night sky and meet local planning requirements, commercial lighting designs must follow dark sky protection rules (based on the MLO Model Lighting Ordinance).

  1. Four things that must be done to make sure that the Dark Sky rules are followed.

  • Zero Uplight (Full Cutoff / U0): The lamp must not let any light in at an angle greater than 90° to the horizontal. The light must be installed so that the tilt angle is locked at 0° (parallel to the ground). If it is installed at an upward angle, it will not meet the U0 requirement.
  • Warm colour temperature limit (≤3000K): The blue light component in high colour temperatures (such as 4000K or 5000K) is very likely to be scattered in the atmosphere, causing the night sky to glow. Dark Sky compliance requires that the colour temperature not be more than 3000K.
  • Smart Control and Curfew Power Reduction: Most businesses have to turn their lights down by 30% to 50% after closing time or during curfew (e.g. 10:00 p.m. to 11:00 p.m.). They can do this using sensors or timers.
  • Dimmable drivers: The driver must support 0–10V dimming to work with smart control systems.

  1. Light pollution limits at the edges of buildings

There are strict rules about light pollution at the edges of shops and other businesses.
  • Nearby business areas: The most light that can go outside of the property is usually 0.5 fc.
  • Next to these houses: The most light that can go outside the property is usually 0.1 fc (you can barely see the light).


Summary: Dark Night Compliance Quick Checklist

When you submit drawings or purchase lighting fixtures, please follow these steps to quickly check the specification sheet (Spec Sheet):
  • Is the "U" value in the BUG rating set to 0? For example, B2-U0-G1 meets the requirements.
  • Is the color temperature (CCT) locked at 3000K or lower?
    (Note: Some manufacturers include a 5000K option in the same spec sheet. Confirm the model code before placing an order.)
  • Is the mounting bracket locked at 0° for horizontal installation?
  • Does the driver support 0–10V dimming and sensor interfaces?
  • Does the spec sheet include the "DarkSky Approved" logo or official certification?
