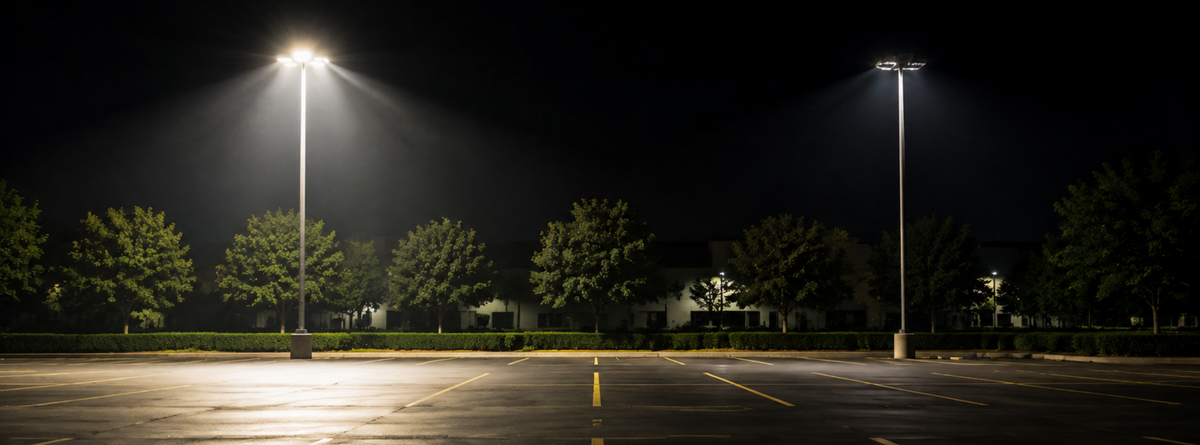

When one parking lot light is noticeably dimmer than the others, replacing the fixture immediately is not always the right first step.
A single dim fixture can be caused by an LED driver problem, an incorrect wattage setting, a dimming signal, voltage conditions, optical degradation, or even a mounting and distribution issue that makes the illuminated pavement appear darker than surrounding areas.
The most important clue is that only one fixture is different.
When several identical or similar parking lot lights operate on the same property, the unaffected fixtures provide a useful baseline for diagnosis. Instead of asking only, "What is wrong with this light?", a better question is:
What is different about this fixture, its controls, its electrical supply, or the way its light reaches the pavement?
This comparison-based approach can help facility managers and maintenance teams narrow down the cause before replacing a working fixture.
Proper parking lot lighting selection, installation, and maintenance can also affect long-term illumination performance and how easily lighting problems are identified.
First, Confirm That the Fixture Is Actually Producing Less Light
A parking lot can appear unevenly illuminated even when the fixtures themselves are operating normally.
This distinction is important:
| What You Observe | What It May Actually Mean |
| The LED fixture itself appears visibly dimmer | Reduced fixture output, driver issue, dimming signal, wattage setting, or electrical issue |
| The pavement below appears darker | Light distribution, aiming, mounting angle, spacing, or obstruction |
| The fixture looks normal from a distance but produces a weak coverage area | Optical distribution or lens condition |
| The fixture was always dimmer than neighboring lights | Configuration, installation, fixture model, or control setup |
| The fixture gradually became dimmer | LED or driver degradation, environmental damage, or thermal stress |
Fixture Brightness vs. Ground Brightness
A fixture and the illuminated surface below it should not be treated as the same measurement.
A luminaire may produce normal total luminous flux while directing that light differently. For example, two area lights with similar lumen output can create very different pavement brightness depending on their optical distribution.
A Type III distribution, for example, sends light differently from a Type V distribution. A change in fixture orientation can also move the highest-intensity portion of the beam away from the expected area.
This is why:
A dark area does not always mean a dim fixture.
The current IES Recommended Practice for Lighting Roadway and Parking Facilities covers parking facilities, calculations, lighting system components, maintenance, and field measurements.
The first diagnostic question should therefore be:
Is the fixture producing less light, or is the light simply reaching the ground differently?
Use Nearby Lights as Your Diagnostic Baseline
One of the most efficient ways to diagnose a single dim parking lot light is to compare it directly with a nearby fixture that is operating normally.
Do not inspect the dim fixture in isolation.
A normal fixture on the same property can act as a practical reference because the two fixtures may share similar environmental conditions, operating hours, and lighting requirements.
Compare These Conditions First
| Comparison Point | Dim Fixture | Normal Fixture | Why It Matters |
| Fixture model | Check | Check | Different models may have different lumen packages |
| Wattage setting | Check | Check | Field-adjustable fixtures may be configured differently |
| CCT setting | Check | Check | Different color temperatures can affect perceived brightness |
| Operating schedule | Check | Check | A control schedule may reduce output at certain hours |
| Dimming connection | Check | Check | 0-10V or other controls can command reduced output |
| Input voltage | Qualified electrician | Qualified electrician | Supply conditions can affect driver operation |
| Lens condition | Inspect | Inspect | Dirt, haze, or moisture can reduce transmitted light |
| Mounting angle | Inspect | Inspect | Aiming changes where light reaches the pavement |
| Distribution type | Verify | Verify | Different optics create different coverage patterns |
A side-by-side comparison is also useful when investigating other outdoor LED behavior. Compare the affected fixture with another light under the same operating conditions is a practical troubleshooting principle because it helps separate fixture-specific symptoms from system-wide conditions.
Determine Whether the Light Was Always Dim or Became Dim Later
The timing of the problem can significantly narrow the possible causes.
The Fixture Was Always Dim
When a parking lot light has been noticeably dim since installation, the problem is less likely to be normal component aging.
Check for:
-
Incorrect wattage selection
-
Incorrect fixture configuration
-
Different lumen package
-
Incorrect dimming connection
-
Wrong fixture model
-
Mounting or aiming differences
-
A different optical distribution
-
Installation-related electrical or control issues
This is particularly important with modern selectable fixtures.
Two luminaires can have identical housings but different operating settings.
For example:
| Fixture | Housing | Selected Wattage | Result |
| Fixture A | Same model | 300W | Higher output |
| Fixture B | Same model | 240W | Lower output |
| Fixture C | Same model | 200W | Noticeably lower output |
From the ground, all three fixtures may appear to be the same product.
However, they are not operating at the same power level.
Two identical-looking parking lot lights may not actually be operating at the same wattage.
The Fixture Gradually Became Dimmer
A fixture that previously matched surrounding lights but gradually lost brightness points toward a different group of causes.
Potential areas include:
-
LED lumen depreciation
-
LED driver degradation
-
Thermal stress
-
Moisture intrusion
-
Optical material degradation
-
Electrical component aging
In an LED luminaire, the LEDs are not the only components that affect light output. The driver regulates electrical power supplied to the LED array. A driver operating outside its normal condition may reduce or destabilize output.
A gradual change should therefore be documented rather than judged from one nighttime observation.
Record:
| Observation | Why It Helps |
| When the dimming was first noticed | Helps establish the failure timeline |
| Whether output changes during the night | May indicate controls or thermal behavior |
| Whether color has changed | Can indicate a different failure pattern |
| Whether the fixture becomes hotter than comparable units | May point toward thermal issues |
| Whether the dimming is stable or progressive | Helps distinguish configuration from degradation |
If reduced brightness is accompanied by unusual color changes, the issue may involve a different failure mechanism. In some cases, reduced output may occur alongside blue or purple LED light color changes, indicating that the fixture may have a different failure pattern.
Check Whether the Fixture Is Dim All Night or Only at Certain Times
The operating pattern is one of the strongest diagnostic clues.
Dim All Night
A fixture that remains at approximately the same reduced brightness throughout the entire night may involve:
-
Incorrect wattage setting
-
Constant dimming command
-
Reduced driver output
-
Electrical supply conditions
-
LED or driver degradation
Dim Only During Certain Hours
A fixture that changes brightness at predictable times should shift attention toward the lighting control system.
Possible causes include:
-
Scheduled dimming
-
Occupancy controls
-
Centralized lighting controls
-
Zone-specific dimming
-
Incorrect control programming
A dim light that follows a schedule is usually a control problem before it is a fixture problem.
Outdoor lighting systems increasingly use photocells, timers, sensors, and dimming controls, and these systems can interact in ways that affect fixture operation.
Check Whether the Fixture Is Receiving an Unintended Dimming Signal
Many commercial LED parking lot lights support 0-10V dimming.
In a 0-10V system, the control circuit can command the driver to reduce light output. This means a fixture can be electrically functional while operating below its intended output level.
A Healthy Fixture Can Look Defective at the Wrong Dimming Level
A single fixture may appear dim because it is:
-
Connected to a different dimming zone
-
Receiving an unintended control signal
-
Connected incorrectly to a control circuit
-
Experiencing a control compatibility issue
-
Programmed to operate at a reduced level
This creates an important diagnostic distinction:
| Symptom | Possible Interpretation |
| Fixture is dim but stable | Constant reduced dimming command |
| Fixture changes brightness at scheduled times | Control schedule |
| Multiple fixtures in one zone dim together | System or zone control |
| Only one fixture is dim | Fixture wiring, local control connection, or driver issue |
| Dimming behavior changes when controls change | Control-related issue |
Problems with 0-10V dimming circuits and control signals can cause an otherwise functional LED fixture to operate below its intended output level.
Before changing wiring or bypassing controls, confirm the installed luminaire's documented control compatibility. Similar-looking fixtures can use different drivers and control configurations.
Verify the Wattage Setting Before Assuming the Fixture Has Failed
Selectable-wattage fixtures create a diagnostic issue that older fixed-output luminaires did not have.
The fixture may not be defective at all.
It may simply be configured for a lower output level.
Why This Happens
During installation or maintenance:
-
The wattage selector may be set differently
-
A replacement fixture may arrive with a different factory setting
-
The selector may be changed during service
-
Two similar fixtures may use different wattage configurations
For example:
| Selected Output | Expected Appearance Relative to Other Fixtures |
| Highest wattage | Maximum designed output |
| Mid-level wattage | Noticeably lower brightness in some applications |
| Lowest wattage | May appear significantly dim compared with surrounding fixtures |
Before diagnosing an internal failure, verify the fixture's documented configuration.
This is especially important when the dim fixture was installed recently.
Always check configuration before replacing components.
Consider Electrical Conditions at That Pole
A parking lot lighting system may look uniform from the ground while the electrical conditions at each pole are not identical.
A single pole may have different circuit conditions because of:
-
Long branch-circuit runs
-
Loose or deteriorated connections
-
Wiring damage
-
Circuit loading
-
Voltage drop
-
Localized electrical faults
The fixture may therefore be identical to surrounding luminaires while receiving different electrical conditions.
The fixture may be the same, but the electrical conditions feeding it may not be.
Electrical measurements should be performed by a qualified electrician using appropriate safety procedures.
This is particularly important when the problem is accompanied by:
-
Flickering
-
Intermittent operation
-
Sudden brightness changes
-
Complete shutoff
-
Repeated driver failures
The same comparison-based approach can also help identify outdoor LED light flicker checks when brightness changes are accompanied by unstable light output.
Look for Thermal Problems Before Blaming the LEDs
Heat management is a critical part of LED luminaire performance.
LEDs and drivers generate heat, and the fixture housing is designed to transfer that heat away from sensitive components.
When thermal conditions differ between fixtures, output behavior may also differ.
Compare the Dim Fixture With Nearby Fixtures
Without opening the fixture or performing electrical work, maintenance personnel can observe whether the affected fixture differs in:
-
Dirt accumulation
-
Physical damage
-
Housing condition
-
Airflow around the fixture
-
Exposure to nearby heat sources
-
Environmental contamination
A fixture installed near a heat source or operating under more severe environmental conditions may experience different long-term thermal stress than surrounding lights.
A useful field observation is whether the brightness difference changes after the fixture has been operating for several hours.
| Observation | Possible Direction for Investigation |
| Dim immediately after startup and remains dim | Configuration, control, driver, or electrical condition |
| Starts normally but becomes dimmer later | Thermal behavior or component degradation |
| Brightness changes with ambient temperature | Driver or thermal sensitivity |
| Only one fixture shows heat-related behavior | Local fixture condition or installation environment |
Thermal symptoms should not automatically be interpreted as LED failure. The driver, enclosure, and surrounding installation conditions may all affect performance.
Inspect the Lens and Optical Components
Not all brightness loss begins at the LED source.
Light must pass through the luminaire's optical system before reaching the parking surface.
A fixture can therefore generate light internally while delivering less usable light outside the housing.
Common Optical Issues
Inspect for:
-
Dirt accumulation
-
Dust
-
Insect buildup
-
Surface haze
-
Lens yellowing
-
Scratches
-
Internal condensation
-
Water-related residue
The LEDs may be producing light normally, but less light may be leaving the fixture.
Compare the affected fixture with a clean, normally operating unit.
| Lens Condition | Potential Effect |
| Heavy dirt buildup | Reduced light transmission |
| Hazy surface | Diffused or reduced optical output |
| Internal condensation | Reduced transmission and possible environmental concerns |
| Yellowing | Changes in transmitted light and appearance |
| Physical damage | Potential optical and environmental sealing problems |
This step is particularly useful when the fixture itself appears normal but the pavement illumination beneath it is noticeably weaker.
Check Whether the Light Is Aimed Differently
Aiming errors can create the appearance of a dim fixture.
This is especially relevant for fixtures with adjustable mounting systems or adjustable heads.
A relatively small difference in orientation can move the primary beam away from the intended coverage area.
Compare These Factors
-
Tilt angle
-
Fixture orientation
-
Direction of the optical pattern
-
Pole-arm position
-
Slip-fitter adjustment
-
Obstructions near the beam path
For example, one fixture may direct more light toward:
-
A roadway
-
An adjacent property
-
Landscaping
-
The side of the parking lot
Meanwhile, the area directly below the fixture may appear darker.
The fixture does not necessarily produce fewer lumens.
It may simply be directing them somewhere else.
Is the fixture actually dim, or is the light being aimed differently?
Verify the Light Distribution, Not Just the Wattage
Two fixtures with the same wattage and similar lumen output can create different parking lot results.
The reason is optical distribution.
Lumens Describe Quantity—Distribution Determines Location
A fixture's total lumen output describes the amount of light produced.
Its optical distribution influences where that light is directed.
Common area-light distributions may include:
-
Type II
-
Type III
-
Type IV
-
Type V
These distributions are designed for different site geometries and coverage patterns.
A fixture with the wrong distribution can make one section of a parking lot appear dim even when the luminaire itself is functioning normally.
| Comparison | Same? | Potential Result |
| Wattage | Yes | Does not guarantee identical coverage |
| Lumens | Yes | Does not guarantee identical pavement illuminance |
| Distribution | No | Coverage pattern may differ significantly |
| Mounting orientation | No | Beam may be directed differently |
| Pole location | No | Overlap with neighboring fixtures may change |
The broader design of parking facilities involves more than fixture output alone. The IES parking facility lighting guidance includes planning, calculations, maintenance, field measurements, and parking-area lighting criteria.
Use the Fixture-Swap Test to Isolate the Problem
When appropriate and performed by qualified personnel, one of the clearest diagnostic methods is to determine whether the problem follows the fixture or stays with the installation location.
This approach is particularly useful when visual inspection does not identify the cause.
Scenario A: The Problem Follows the Fixture
For example:
-
Dim Fixture A is moved to Location B
-
Fixture A remains dim
-
Fixture B works normally in Location A
The investigation should focus on the fixture.
Potential areas include:
-
Driver
-
LED module
-
Internal configuration
-
Optical components
-
Internal dimming connection
Scenario B: The Problem Stays With the Pole
For example:
-
Fixture A is moved away
-
Another compatible fixture is installed at the same location
-
The replacement fixture also appears dim
The investigation should focus more closely on:
-
Electrical supply
-
Control wiring
-
Dimming signal
-
Local circuit conditions
-
Pole-specific installation conditions
The diagnostic principle is simple:
A problem that follows the fixture points to the fixture itself, while a problem that stays with the pole points to the electrical or control system.
This comparison method is often more informative than replacing components one by one.
Quick Diagnostic Table: What the Dimming Pattern Can Tell You
| What You Observe | Most Likely Area to Check First |
| Dim all night | Wattage setting, dimming command, driver |
| Dim only during specific hours | Controls, timer, schedule |
| Became dim gradually | Driver, LED degradation, environmental stress |
| Dim since installation | Configuration, installation, fixture selection |
| Fixture looks normal but pavement is dark | Distribution, aiming, mounting |
| Problem follows the fixture | Fixture or internal component |
| Problem stays with the pole | Electrical supply or control system |
| Lens looks hazy or dirty | Optical light loss |
| Brightness changes after hours of operation | Thermal behavior or driver condition |
| Color changes as well as brightness | Different LED or optical failure pattern |
When a Dim Parking Lot Light May Be Nearing Failure
Not every dim fixture can be corrected through controls or configuration.
Replacement or professional repair should be considered when there is evidence of internal component deterioration.
Common warning signs include:
-
Progressive reduction in output
-
Repeated abnormal operation
-
Brightness instability
-
Color changes
-
Recurring driver problems
-
Environmental damage
-
Physical deterioration affecting the luminaire
Do not assume that every dim fixture is automatically defective.
Likewise, do not continue resetting controls or cleaning optics when the fixture shows a clear pattern of progressive component failure.
The goal is to identify the failure category before replacing equipment.
When Should You Replace the Fixture?
Consider replacement when:
-
Internal failure has been confirmed
-
Light output continues to decline
-
The driver or LED system is no longer practical to repair
-
Environmental damage affects performance or safety
-
The fixture no longer meets the site's lighting requirements
Do not replace the fixture before checking for:
-
Incorrect wattage settings
-
Dimming commands
-
Control programming
-
Lens contamination
-
Mounting angle
-
Optical distribution
-
Pole-specific electrical conditions
Replacing a dim fixture without identifying the cause can leave the same problem behind.
Frequently Asked Questions(FAQ)
⏵ Why is only one parking lot light dim?
When only one fixture is dim, start by comparing it with nearby normal fixtures. It could be a fixture related issue, driver issues, wrong wattage setting, optical degradation or a dimming configuration. It can also be site specific, such as electrical supply or control conditions at this pole.
⏵ Can a 0-10V dimming connection cause one parking lot light to be dim?
Yes. A fixture can be functioning normally and a lower-level dimming signal can be sent. Check the documented control configuration and compatibility before assuming the LED module or driver has failed.
⏵ Why does one parking lot light look dim even though it has the same wattage?
The selected wattage may not actually be the same, particularly with field-adjustable fixtures. Even when wattage is identical, optical distribution, aiming, lens condition, and electrical or control conditions can make the fixture appear different.
⏵ Can a dirty lens make an LED parking lot light appear dim?
Yes. Dirt, haze, insects, moisture, or surface degradation can reduce the amount of light transmitted through the optical system. Compare the affected lens with a clean fixture before assuming the LEDs are producing less light.
⏵ Should I replace a dim parking lot light immediately?
Not necessarily. First determine whether the problem follows the fixture or stays with the pole. Configuration, controls, optical conditions, and electrical supply issues can all make a functioning fixture appear dim.
