A security camera can only capture what is available within its visual environment. In a parking lot, poor lighting can lead to dark faces, hidden vehicle details, excessive image noise, and difficult-to-identify objects. On the other hand, simply installing brighter lights does not automatically produce better security footage. Excessive brightness, glare, uneven illumination, and poorly aimed fixtures can create their own problems.
So, can LED parking lot lights improve security camera visibility?
Yes—but the key is not maximum brightness. The goal is balanced, uniform, and properly directed illumination that gives cameras enough usable light without creating glare or extreme contrast.
Modern LED parking lot lights can support security cameras by improving light levels, reducing dark zones, providing better control over light distribution, and maintaining consistent nighttime illumination. The U.S. Department of Energy notes that LED exterior luminaires can provide improved uniformity and controllability, while efficient outdoor lighting can be designed around factors such as light distribution, glare, color quality, and application requirements.
How Parking Lot Lighting Affects Security Camera Footage
Security cameras and human vision do not respond to a parking lot in exactly the same way. A person may be able to recognize someone walking through a dim area, while a camera may produce a noisy or low-detail image.
Three lighting characteristics are especially important: usable illumination, uniformity, and glare control.
| Lighting Factor | Potential Camera Problem | What Good LED Lighting Can Do |
| Low illumination | Dark, noisy footage | Provide more usable light |
| Uneven illumination | Bright and dark zones in the same frame | Improve lighting uniformity |
| Direct glare | Washed-out or overexposed areas | Redirect light away from the lens |
| Deep shadows | Facial or vehicle details disappear | Reduce harsh shadow areas |
| Poor color quality | Colors are difficult to distinguish | Provide better color rendering |
| Flicker | Possible visual artifacts under some camera settings | Use quality drivers and compatible fixtures |
| Inconsistent operation | Camera performance changes throughout the night | Use photocells or lighting controls |
This is why a parking lot lighting upgrade should be evaluated as a lighting layout, rather than simply a wattage upgrade.
More Light Is Not Always Better
One of the most common mistakes is assuming that a 300W fixture must produce better security footage than a 150W fixture.
That is not necessarily true.
If the higher-output fixture creates a bright area directly in front of the camera while leaving surrounding areas dark, the camera may still struggle with contrast. Similarly, a fixture aimed toward the camera can create glare even when the rest of the parking lot is adequately illuminated.
The better question is:
How evenly does the fixture deliver useful light across the camera's field of view?
5 Ways LED Parking Lot Lights Can Improve Camera Visibility
1. Increase Usable Light in Key Camera Zones
LED parking lot lights can provide consistent illumination around areas where security cameras are most likely to monitor activity.
These areas commonly include:
-
Parking lot entrances and exits
-
Pedestrian walkways
-
Building entrances
-
Loading areas
-
Drive lanes
-
Payment or ticketing areas
-
Isolated parking spaces
-
Property boundaries
The objective is not to flood every area with maximum light. Instead, lighting should support the areas where people, vehicles, and security events are most likely to appear.
For existing projects, start by identifyinFor existing projects, start by identifying where cameras are installed and then compare those locations with the current lighting layout.
2. Reduce Dark Spots Around People and Vehicles

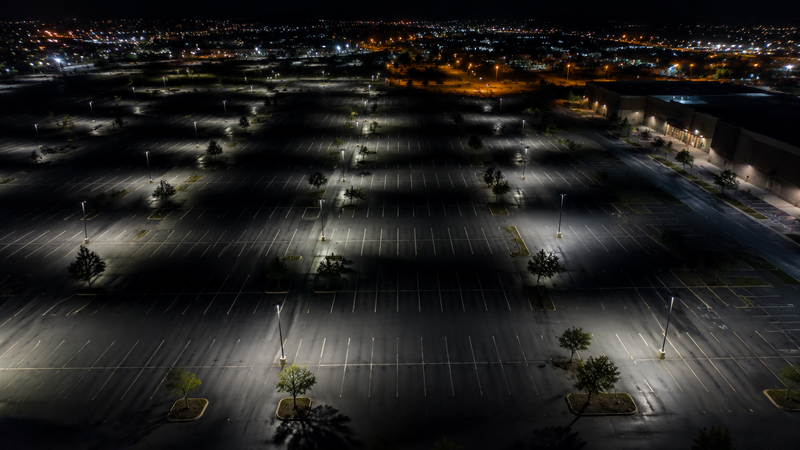

A parking lot can have a relatively high average light level and still contain areas that are difficult for cameras to capture.
For example:
| Area | Lighting Problem | Camera Impact |
| Between parked vehicles | Deep shadows | Faces and vehicle details may disappear |
| Near building walls | Uneven illumination | People may appear as silhouettes |
| Lot corners | Low illumination | Reduced image detail |
| Under trees | Changing shadows | Inconsistent image quality |
| Near bright entrances | High contrast | Exposure becomes more difficult |
| Between widely spaced poles | Dark zones | Gaps in usable camera coverage |
This is where light distribution becomes more important than raw lumen output.
DOE outdoor-area-lighting research has demonstrated how fixture selection can affect uniformity. In one comparison, a legacy HPS installation had a maximum-to-minimum illuminance ratio of 6.04:1, while LED configurations in the same analysis achieved 2.68:1. The study also reported substantial energy reductions for LED configurations.
A lower max/min ratio generally indicates more uniform illumination.
For security-camera applications, that matters because a camera benefits from having fewer extreme transitions between very bright and very dark areas.
3. Improve Color Recognition
Lighting quality can also affect how cameras capture color.
This is particularly useful when security footage needs to distinguish:
-
Vehicle colors
-
Clothing
-
Signs
-
Packages
-
Safety markings
-
Building features
Color Rendering Index (CRI) describes how accurately a light source renders colors compared with a reference source. However, CRI should not be treated as a guarantee of camera image quality.
Camera performance also depends on the camera sensor, exposure settings, lens, dynamic range, image processing, and available illumination.
For a parking lot project, it is better to evaluate the entire lighting-and-camera system instead of selecting a fixture based on CRI alone.
4. Maintain More Consistent Lighting at Night
Security cameras are expected to operate when natural daylight is unavailable. That makes reliable nighttime lighting important.
A properly configured dusk-to-dawn photocell can automatically activate exterior lighting when ambient light falls and switch it off when daylight returns.
This approach can also reduce unnecessary daytime operation.
The DOE notes that exterior LED luminaires can be paired with automatic controls and networked systems, including systems that incorporate motion detectors and video cameras.
If a parking lot uses photocells, the sensor should also be positioned carefully. Optical feedback from the fixture itself or nearby lighting can cause unwanted cycling.
5. Reduce the Risk of Lighting-Related Glare
More light can actually make a camera image worse if it reaches the lens directly.
Common sources of glare include:
-
Fixtures installed within the camera's field of view
-
Incorrect fixture aiming
-
Vehicle headlights
-
Reflective pavement
-
Glass building surfaces
-
Highly reflective vehicles
-
Bright signs
The goal is to illuminate the subject, not the camera lens.
This means fixture orientation and optical distribution should be evaluated alongside camera placement.
What Type of LED Parking Lot Light Is Best for Security Cameras?
There is no single wattage or CCT that works for every parking lot. Fixture selection should start with the site layout and lighting requirements.
Here are the specifications worth comparing:
| Specification | Why It Matters |
| Lumen output | Determines total light produced |
| Efficacy (lm/W) | Indicates how efficiently electrical power becomes light |
| Distribution pattern | Determines where the light goes |
| Uniformity | Helps reduce bright and dark zones |
| CCT | Determines the apparent color of white light |
| CRI | Helps with color appearance |
| Glare control | Helps protect visual comfort and camera exposure |
| Dimming | Allows lighting levels to be adjusted |
| Photocell | Automates dusk-to-dawn operation |
| Driver quality | Important for stable operation |
| IP rating | Helps protect outdoor fixtures |
| Mounting options | Allows more precise fixture positioning |
The DOE's current exterior-lighting guidance lists a minimum luminaire efficacy requirement of 136 lm/W for outdoor pole/arm-mounted area and roadway luminaires in federal procurement applications. This is a useful benchmark when evaluating efficient commercial products, although the appropriate specification for a particular project depends on the application and applicable requirements.
Does Color Temperature Affect Security Camera Visibility?
Color temperature, measured in Kelvin (K), changes the visual appearance of white light.
| CCT | Appearance | Typical Consideration |
| 3000K | Warm white | More comfortable, warmer appearance |
| 4000K | Neutral/cool white | Balanced appearance for many commercial areas |
| 5000K | Cool/daylight white | Crisp appearance and strong visual contrast |
Is 5000K Always Better for Security Cameras?
No.
A 5000K fixture does not automatically produce better footage than a 4000K fixture.
The final result depends on the complete system:
Fixture → optics → mounting position → illumination → camera → lens → exposure settings
Color temperature should therefore be selected based on the property's visual requirements, surrounding environment, local regulations, and camera performance—not simply because a higher Kelvin value sounds brighter.
DOE research also points out that outdoor lighting decisions involve multiple factors, including intensity, distribution, spectrum, timing, and duration, rather than a single performance metric.
How Light Distribution Affects Security Camera Coverage
For parking lots, distribution patterns are particularly important because fixtures need to cover large horizontal areas from elevated mounting positions.
Common distribution types include:
| Distribution | General Pattern | Typical Application |
| Type III | Forward and lateral distribution | Parking lot perimeters and roadways |
| Type IV | Forward-throw / semicircular | Perimeter-mounted fixtures |
| Type V | Symmetrical distribution | Center-mounted poles |
The correct choice depends on pole location and the area that needs to be illuminated.
A Type V fixture positioned near the center of a parking lot may provide useful 360-degree coverage, while a Type III fixture may be better suited to a fixture installed along the edge of the property.
Where Should Parking Lot Lights Be Positioned for Better Camera Coverage?
Lighting and camera placement should be considered together.
Avoid Pointing Fixtures Directly Into Camera Lenses
If a bright LED source appears directly in the camera's field of view, it can create glare and increase exposure challenges.
Instead, position the fixture so that its useful light reaches the monitored area without placing the light source directly in front of the camera.
Illuminate Faces and Vehicles From Useful Angles
A person standing underneath or behind a poorly positioned light may still appear as a silhouette.
The lighting layout should provide enough illumination across the areas where people and vehicles are expected to move.
Prioritize Security-Critical Zones
Start with the areas that matter most:
-
Entrances and exits
-
Pedestrian paths
-
Building entrances
-
High-traffic parking rows
-
Isolated areas
-
Loading zones
-
Property boundaries
This approach is usually more effective than simply increasing the wattage of every fixture.
LED Parking Lot Lights vs. Traditional Lighting for Security Cameras
LEDs are not automatically better simply because they are LEDs. However, modern LED luminaires offer several characteristics that make them easier to optimize for outdoor applications.
| Factor | LED Parking Lot Lighting | Traditional HID Lighting |
| Instant startup | Yes | Some HID systems require warm-up |
| Dimming capability | Widely available | More limited |
| Optical control | Highly configurable | Depends heavily on reflector |
| White-light options | Wide range | Depends on lamp type |
| Automated controls | Widely supported | Available but less flexible |
| Maintenance | Generally lower | More lamp/ballast maintenance |
| Energy efficiency | High | Generally lower |
| Fixture-level control | Strong | More limited |
DOE identifies LED exterior lighting as offering strong efficiency, controllability, and light-level options compared with several traditional technologies.
The agency also reports that LEDs can achieve efficacies of 150 lm/W or more in some specialized applications, although actual luminaire efficacy depends on the complete fixture, including optics, driver, and thermal design.
Common Parking Lot Lighting Mistakes That Reduce Camera Visibility
Mistake 1: Choosing Wattage Instead of Distribution
A higher wattage does not guarantee better coverage.
Mistake 2: Creating Bright Spots and Dark Zones
Uneven lighting can make it difficult for cameras to capture consistent detail across a scene.
Mistake 3: Pointing Fixtures Toward Cameras
Direct light entering the lens can create glare and exposure problems.
Mistake 4: Ignoring Existing Camera Angles
A lighting retrofit should consider where cameras actually point.
Mistake 5: Treating CCT as the Main Performance Metric
4000K versus 5000K is only one part of the lighting decision.
Mistake 6: Leaving Security Lighting Uncontrolled
Lights that remain off after dark—or turn off unexpectedly—can create avoidable gaps in camera visibility.
How to Coordinate Parking Lot Lighting With Security Cameras
For an existing parking lot, use this simple process:
| Step | What to Check |
| 1 | Map existing camera locations |
| 2 | Identify dark zones in nighttime footage |
| 3 | Mark entrances, exits and high-risk areas |
| 4 | Record existing pole locations |
| 5 | Review fixture distribution patterns |
| 6 | Select appropriate LED output and optics |
| 7 | Aim fixtures away from camera lenses |
| 8 | Test the camera footage at night |
| 9 | Adjust fixture angles or spacing |
| 10 | Verify photocell/control operation |
A good retrofit should be evaluated after dark, not only during daylight.
Take sample footage from the same camera positions before and after the lighting upgrade. Compare faces, vehicle details, shadows, color recognition, and dark-zone coverage.
This produces a much more useful evaluation than simply comparing fixture wattage.
Can Better Parking Lot Lighting Replace Security Cameras?
No.
Lighting and surveillance systems perform different functions.
Lighting improves visibility. Cameras record and analyze activity.
The strongest approach is to design them as complementary systems:
Good lighting + appropriate camera placement + proper camera settings = better nighttime surveillance conditions
LED lighting can help a camera work with more usable visible light, but it cannot replace adequate camera resolution, lens selection, field of view, storage, motion detection, or other security-system components.
Frequently Asked Questions(FAQ)
⏵ Are LED parking lot lights good for security cameras?
Yes. Properly selected LED parking lot lights can provide consistent illumination, reduce dark zones, and improve the conditions in which security cameras operate.
⏵ What color temperature is best for security cameras?
There is no universal best CCT. 4000K and 5000K are common choices for commercial outdoor lighting, but fixture distribution, glare, illumination levels, and camera settings are equally important.
⏵ Can bright parking lot lights cause camera glare?
Yes. A fixture that is directly visible to a camera can create glare or overexposure. Proper aiming and optical distribution can help reduce the problem.
⏵ Does higher wattage make security camera footage clearer?
Not necessarily. A higher-wattage fixture can create excessive brightness in one area while leaving other areas dark. Uniform illumination is often more useful than simply increasing wattage.
⏵ Do LED lights flicker on security cameras?
Poor-quality LED drivers or incompatibility between lighting and camera settings can sometimes produce visible artifacts. For security-critical applications, select quality LED fixtures and test the actual camera-and-lighting combination at night.
⏵ Should parking lot lights be brighter near security cameras?
Not necessarily. The goal is to provide adequate, balanced illumination across the camera's field of view rather than creating an isolated bright zone around the camera.
